CPM-180 Centrifugal Electric Motor Water Pump 1.5HP With Thermal Protector
Electric Motor Water Pump DESCRIPTION
CPM-180 centrifugal electric motor water pump is suitable for clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their compactness, reliability, and the fact that they are easy to use, they are suitable for use in domestic and civil applications such as the distribution of water in combination with small and medium pressure sets, and for transferring liquids and for the irrigation of gardens and allotments,
The pump should be installed in an enclosed environment or at least sheltered from inclement weather.
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) |
| CPM-180 | 1.5 / 1.1 | 6.2 | 2850 | 130 | 42 | 9 | 1"x1" | 425x250x320 | 21 |
OPERATING CONDITION
1. Liquid temperature up to 60 Celsius degree.
2. Ambient temperature up to 40 Celsius degree.
3. Total suction lift to 8m.

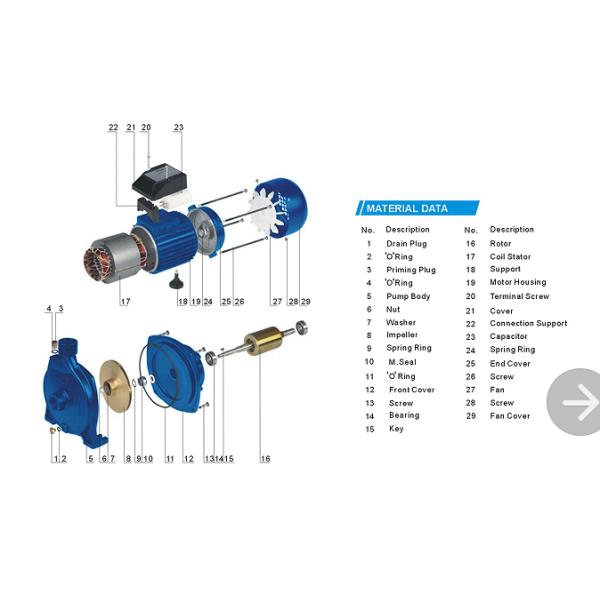

STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl PPO |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
ADVANTAGEE electric Motor Water Pump
1. 100% high-quality copper,100% output.
2. Cold-rolled silicon steel sheet by a high-speed punching machine.
3. Good quality bearing, the surface more smooth, the dimension more precise.
4. Thermal Protector.
5. One-year warranty.
Electric Motor Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
