High Energy Electric IE2 Motor 3 Phase Asynchronous 380V Y2 Series For Driving

Name: High Energy Electric IE2 Motor 3 Phase Asynchronous 380V Y2 Series For Driving
Brand: ZOZHI
Price: 1 USD

Wholesale High Energy Electric IE2 Motor 3 Phase Asynchronous 380V Y2 Series For Driving from china suppliers

Brand Name : ZOZHI

Model Number : Y2-631-4

Certification : ISO

Place of Origin : China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden cases

Product Name : IE2 Motor

Application : Driving

Power : 0.16HP / 0.125HP

Pole : 4

Phase : 3 Phase

Insulation Classtion Class : F

Voltage : 380v

Type : Asynchronous Motor

Contact Now

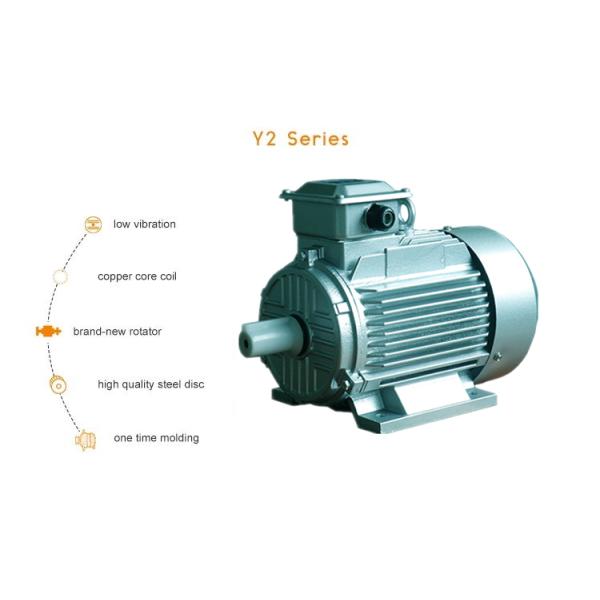

3 Phase Asynchronous Motor 380V High Energy Electric Motor Y2 Series IE2

YE2 Series three-phase asynchronous motor is designed according to the high energy efficiency standard, which conforms to the spirit and requirements of energy-saving and consumption reduction proposed by the state for the production and manufacturing industry. The utility model has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection level, high insulation level, etc.,

Which can be widely used for driving various general mechanical equipment such as fan, water pump, machine tool, compressor conveyor machinery, etc.,

High Energy Electric IE2 Motor 3 Phase Asynchronous 380V Y2 Series For Driving

Structural characteristics:

Model	Output HP KW		Current (A)	Speed (r/min)	Eff (%)	Power Factor	Eff (%)	Power Factor	Eff (%)	Power Factor	T start/Tn	Ist/In		Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
Y2-631-2	0.25	0.18	0.53	2720	65.0	0.80	63.1	0.75	60.0	0.69	2.2	6.5		2.3
Y2-632-2	0.34	0.25	0.69	2720	68.0	0.81	65.1	0.76	62.0	0.70	2.2	7.0		2.3
Y2-711-2	0.5	0.37	0.99	2740	70.0	0.81	69.0	0.76	66.0	0.71	2.2	7.0		2.3
Y2-712-2	0.75	0.55	1.4	2740	73.0	0.82	71.2	0.70	70.0	0.72	2.2	7.0		2.3
Y2-801-2	1	0.75	1.83	2830	75.0	0.83	73.0	0.77	71.0	0.74	2.2	7.0		2.3
Y2-802-2	1.5	1.1	2.58	2830	77.0	0.84	75.1	0.78	73.0	0.73	2.2	7.0		2.3
Y2-90S-2	2	1.5	3.43	2840	79.0	0.84	77.0	0.78	74.9	0.76	2.0	7.0		2.3
Y2-90L-2	3	2.2	4.85	2840	81.0	0.85	80.0	0.79	79.9	0.76	2.0	7.0		2.3
Y2-100L-2	4	3	6.31	2870	83.0	0.87	82.0	0.80	81.1	0.77	2.0	7.0		2.3
Y2-112M-2	5.5	4	8.1	2890	85.0	0.88	83.9	0.83	82.0	0.80	2.0	7.0		2.2
Y2-132S1-2	7.5	5.5	11	2900	86.0	0.88	84.2	0.83	83.8	0.80	2.0	7.0		2.2
Y2-132S2-2	10	7.5	14.9	2900	87.0	0.88	85.8	0.84	84.9	0.78	2.0	7.0		2.2
Y2-132M1-2	15	11	21.3	2930	88.0	0.89	86.6	0.84	85.1	0.79	2.0	7.0		2.2
Y2-132M2-2	20	15	28.8	2930	89.0	0.89	87.9	0.84	86.4	0.80	2.0	7.0		2.2
Y2-160L-2	25	18.5	34.7	2930	90.0	0.90	89.8	0.86	86.8	0.80	2.0	7.0		2.2
Y2-180M-2	30	22	41	2940	90.0	0.90	88.9	0.86	86.8	0.82	2.0	7.0		2.2
Y2-200L1-2	40	30	55.5	2950	91.2	0.90	89.4	0.85	88.5	0.81	2.0	7.0		2.2
Y2-200L2-2	50	37	67.9	2950	92.0	0.90	91.0	0.86	90.4	0.82	2.0	7.0		2.2
Y2-225M-2	60	45	82.3	2970	92.3	0.90	90.5	0.85	89.7	0.82	1.8	6.8		2.2
Y2-250M-2	75	55	101	2970	92.5	0.90	91.3	0.85	91.0	0.82	1.8	6.8		2.2
Y2-280S-2	100	75	134	2970	93.0	0.90	91.9	0.86	91.5	0.81	1.8	6.8		2.2
Y2-280M-2	125	90	160	2970	93.8	0.91	92.6	0.87	92.2	0.83	1.8	6.8		2.2
Y2-315S-2	150	110	195	2980	94.0	0.91	93.1	0.87	93.0	0.83	1.6	7.0		2.2
Y2-315M-2	180	132	233	2980	94.5	0.91	93.2	0.87	93.1	0.84	1.6	7.1		2.2
Y2-315L1-2	220	160	279	2980	94.6	0.92	93.1	0.88	93.3	0.85	1.6	7.2		2.2
Y2-315L2-2	270	200	348	2980	94.8	0.92	94.0	0.88	93.8	0.85	1.6	7.3		2.2
Y2-355M-2	340	250	433	2980	95.3	0.92	94.8	0.88	94.0	0.85	1.6	7.4		2.2
Y2-355L-2	430	315	544	2980	95.6	0.92	95.0	0.88	94.0	0.85	1.6	7.5		2.2
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Y2-631-4	0.16	0.12	0.42	1310	57.0	0.72	56.1	0.69	51.9	0.55	2.1	5.2		2.2
Y2-632-4	0.25	0.18	0.62	1310	60.0	0.73	58.5	0.70	56.7	0.59	2.1	5.2		2.2
Y2-711-4	0.34	0.25	0.79	1330	65.0	0.74	62.4	0.73	59.3	0.59	2.1	5.2		2.2
Y2-712-4	0.5	0.37	1.12	1330	67.0	0.75	65.3	0.74	60.1	0.63	2.1	5.2		2.2
Y2-801-4	0.75	0.55	1.57	1390	71.0	0.75	69.2	0.74	68.6	0.64	2.4	5.2		2.3
Y2-802-4	1	0.75	2.03	1390	73.0	0.76	71.7	0.75	70.0	0.67	2.3	6.0		2.3
Y2-90S-4	1.5	1.1	2.89	1400	75.0	0.77	73.1	0.75	72.0	0.67	2.3	6.0		2.3
Y2-90L-4	2	1.5	3.7	1400	78.0	0.79	76.1	0.76	74.1	0.69	2.3	6.0		2.3
Y2-100L1-4	3	2.2	5.16	1430	80.0	0.81	78.0	0.79	75.5	0.69	2.3	7.0		2.3
Y2-100L2-4	4	3	6.78	1430	82.0	0.82	79.9	0.78	78.5	0.70	2.3	7.0		2.3
Y2-112M-4	5.5	4	8.8	1440	84.0	0.82	82.9	0.79	81.1	0.70	2.3	7.0		2.3
Y2-132S-4	7.5	5.5	11.7	1440	85.0	0.83	83.8	0.81	82.2	0.73	2.3	7.0		2.3
Y2-132M-4	10	7.5	15.6	1440	87.0	0.84	85.6	0.82	83.6	0.74	2.3	7.0		2.3
Y2-160M-4	15	11	22.3	1460	88.0	0.84	86.8	0.83	85.9	0.75	2.2	7.5		2.3
Y2-160L-4	20	15	30.1	1460	89.0	0.85	88.9	0.83	88.5	0.75	2.2	7.5		2.3
Y2-180M-4	25	18.5	36.5	1470	90.5	0.86	90.0	0.82	89.5	0.77	2.2	7.5		2.3
Y2-180L-4	30	22	43.2	1470	91.0	0.86	90.2	0.84	89.9	0.76	2.2	7.2		2.3
Y2-200L-4	40	30	57.6	1470	92.0	0.86	91.5	0.84	90.8	0.77	2.2	7.2		2.3
Y2-225S-4	50	37	69.9	1480	92.5	0.87	91.9	0.87	90.3	0.80	2.2	7.2		2.3
Y2-225M-4	60	45	84.7	1480	92.8	0.87	92.4	0.87	90.9	0.80	2.2	7.2		2.3
Y2-250M-4	75	55	103	1480	93.0	0.87	92.7	0.89	91.2	0.81	2.2	7.2		2.3
Y2-280S-4	100	75	140	1480	93.8	0.87	92.4	0.86	91.6	0.80	2.2	7.2		2.3
Y2-280M-4	125	90	167	1490	94.2	0.87	93.0	0.86	92.8	0.78	2.2	7.2		2.3
Y2-315S-4	150	110	201	1490	94.5	0.88	93.3	0.87	92.8	0.81	2.1	6.9		2.2
Y2-315M-4	180	132	240	1490	94.8	0.88	93.8	0.87	93.0	0.81	2.1	6.9		2.2
Y2-315L1-4	220	160	287	1490	94.9	0.89	93.9	0.88	93.1	0.81	2.1	6.9		2.2
Y2-315L2-4	270	200	359	1490	95.0	0.89	94.1	0.88	93.8	0.82	2.1	6.9		2.2
Y2-355M-4	340	250	443	1485	95.3	0.90	94.3	0.88	94.0	0.83	2.1	6.9		2.2
Y2-355L-4	430	315	556	1485	95.6	0.90	94.5	0.89	94.0	0.84	2.1	6.9		2.2

PERFORMANCE CHART

Model	Output HP KW		Current (A)		Speed (r/min)	Eff (%)	Power Factor		T start/Tn		Ist/In		Tmax/Tn
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
Y2-711-6	0.25	0.18	0.74		850	56.0	0.66		1.9		4.0		2.0
Y2-712-6	0.34	0.25	0.95		850	59.0	0.68		1.9		4.0		2.0
Y2-801-6	0.5	0.37	1.3		890	62.0	0.70		1.9		4.7		2.0
Y2-802-6	0.75	0.55	1.79		890	65.0	0.72		1.9		4.7		2.1
Y2-90S-6	1	0.75	2.29		910	69.0	0.72		2.0		5.5		2.1
Y2-90L-6	1.5	1.1	3.18		910	72.0	0.73		2.0		5.5		2.1
Y2-100L-6	2	1.5	3.94		940	76.0	0.75		2.0		5.5		2.1
Y2-112M-6	3	2.2	5.6		940	79.0	0.76		2.0		6.5		2.1
Y2-132S-6	4	3	7.4		960	81.0	0.76		2.1		6.5		2.1
Y2-132M1-6	5.5	4	9.8		960	82.0	0.76		2.1		6.5		2.1
Y2-132M2-6	7.5	5.5	12.9		960	84.0	0.77		2.1		6.5		2.1
Y2-160M-6	10	7.5	17		970	86.0	0.77		2.0		6.5		2.1
Y2-160L-6	15	11	24.2		970	87.5	0.78		2.0		6.5		2.1
Y2-180L-6	20	15	31.6		970	89.0	0.81		2.0		7.0		2.1
Y2-200L1-6	25	18.5	38.6		970	90.0	0.81		2.1		7.0		2.1
Y2-200L2-6	30	22	44.7		970	90.0	0.83		2.1		7.0		2.1
Y2-225M-6	40	30	59.3		980	91.5	0.84		2.0		7.0		2.1
Y2-250M-6	50	37	71		980	92.0	0.86		2.1		7.0		2.1
Y2-280S-6	60	45	86		980	92.5	0.86		2.1		7.0		2.0
Y2-280M-6	75	55	105		980	92.8	0.86		2.1		7.0		2.0
Y2-315S-6	100	75	141		990	93.5	0.86		2.0		7.0		2.0
Y2-315M-6	125	90	168		990	93.8	0.86		2.0		7.0		2.0
Y2-315L1-6	150	110	206		990	94.0	0.86		2.0		6.7		2.0
Y2-315L2-6	180	132	244		990	94.2	0.87		2.0		6.7		2.0
Y2-355M1-6	220	160	282		990	94.5	0.88		1.9		6.7		2.0
Y2-355M2-6	270	200	365		990	94.7	0.88		1.9		6.7		2.0
Y2-355L-6	340	250	455		990	94.9	0.88		1.9		6.7		2.0
380V 5OHz Synchronous Speed 750r/min (8 Poles)
Y2-160M1-8	5.5	4	10.3		720	81.0	0.73		2.0		6.0		2.0
Y2-160M2-8	7.5	5.5	13.6		720	83.0	0.74		2.1		6.0		2.0
Y2-160L-8	10	7.5	17.8		720	85.5	0.75		2.1		6.0		2.0
Y2-180L-8	15	11	25.1		730	87.5	0.76		2.1		6.6		2.0
Y2-200L-8	20	15	34.1		730	88.0	0.76		2.0		6.6		2.0
Y2-225S-8	25	18.5	40.6		730	90.0	0.76		2.0		6.6		2.0
Y2-225M-8	30	22	47.4		740	90.5	0.78		2.0		6.6		2.0
Y2-250M-8	40	30	64		740	91.0	0.79		2.0		6.6		2.0
Y2-280S-8	50	37	78		740	91.5	0.79		1.9		6.6		2.0
Y2-280M-8	60	45	94		740	92.0	0.79		1.9		6.6		2.0
Y2-315S-8	75	55	111		740	92.8	0.81		1.9		6.6		2.0
Y2-315M-8	100	75	151		740	93.0	0.81		1.9		6.6		2.0
Y2-315L1-8	125	90	178		740	93.8	0.82		1.9		6.6		2.0
Y2-315L2-8	150	110	217		740	94.0	0.82		2.9		6.4

IE2 Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T, 30% deposit, and 70% against the BL copy or 100% LC at sight.
